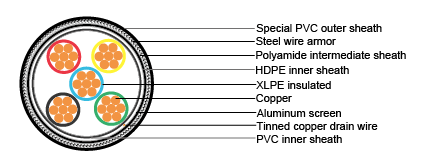

600V/1000V XLPE Insulated Overall Screened & Steel Wire Armored Cable to IEC 60502-1

Cables for Oil Industry

These cables are used for electricity supply in low voltage installation system. They are suitable for installation in

indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions,

industrial plants and where aliphatic and aromatic hydrocarbon may be present or where require chemical and

mechanical protections.

Conductor:

Solid or stranded copper

Insulation:

XLPE

Core identification

1 Core: Red or Black

2 Cores: Red, Black

3 Cores: Red, Yellow, Blue

4 Cores: Red, Yellow, Blue, Black

5 Cores: Red, Yellow, Blue, Black, Green

Above 5 cores: Black core printed with white numbers

Inner sheath:

PVC. Color: black

Screen:

aluminum/polyethylene tape with tinned copper drain wire

Inner sheath:

HDPE. Color: black

Intermediate sheath:

Polyamide

Armor:

Galvanized steel wires or aluminum wires for 1 core cable

Sheath:

Speical PVC. Color: black

Rated voltage: 600V/1000V

Fire retardance: IEC 60332-3-22

Operating temperature: -20~60°C

Max. conductor operating temperature: 90°C

Chemical resistance: Aliphatic and aromatic hydrocarbon resistance
